o2Rc digital
remote control rally
O2RC - the o2riders bluetooth system that allows you to transform your mobile (or tablet) into a professional navigation system: you can read the roadbook directly from the screen of your device, adjust the tripmaster and go from vignette to vignette without taking your hands off the handlebars, just like a professional team.
Compatibility
A highly developed electronics to make the system incredibly stable and compatible with Android and Ios
Roughness
Developed and manufactured in technologically advanced materials; IP67 buttons, carbon loaded Nylon housing
info Generales

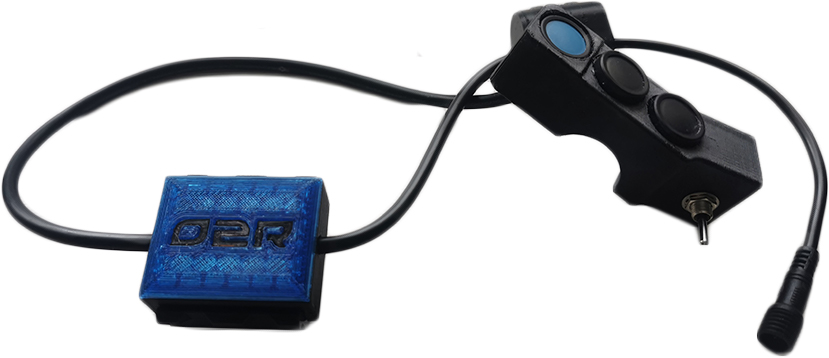

The O2RC remote control consists of a switch block that is fixed to the handlebar and the O2RCboad, the electronic control unit, the heart of the system; it needs its own power supply.
Being fully modular, there are many options available both as a pushbutton block and as a power supply or fixing system.
Switches
NEW O2RC
3.0 NT
4 PUSH BUTTONS, ONLY 18 mm of LENGHT
It is the thinnest version of the available, the same function but in 18 mm of Space only ; for all riders that needs to save as much space as possible, is the best option for those bikes or quads that do not have much room on the handlebars, such as MAXITRAILS and TRAILS.
The 2 upper buttons are used to adjust the tripmaster(+/-/Reset),the 2 lower buttons to move the bullets of the electronic roadbook.
O2RC SLIM
2.0
3 pulsadores - 1 panaquita
It is the thinnest toggle version available, perfect for use where it is necessary to save as much space as possible, is the best option for those bikes or quads that do not have much room on the handlebars, such as MAXITRAILS and TRAILS.
The 2 buttons are used to adjust the tripmaster(+/-/Reset),the toggle to move the bullets of the electronic roadbook.
O2RC PRO
5 pulsadores
It is the fattest and most robust version, perfect for rally and enduro bikes; the type of design allows you to keep the buttons well protected in case of hitting or falling; on the contrary, it needs more space on the handlebars, being wider than the slim.
2 buttons are used for the tripmaster, 2 for bulleting and the third button is used as a Reset of the tripmaster.
NEW O2RC
PRO SUPERSLIM
5 pulsadores
It is the thinest version o the PRO , perfect for TRAIL and MAXITRAIL MOTORbikes; the type of design allows you to keep the buttons well protected in case of hitting or falling; on the contrary, it needs more space on the handlebars, being wider than the slim.
4 buttons are used for the tripmaster, 5 funtions (like others O2RC).
NEW O2RC
MICRO
5 pulsadores
It is the smallest version of the O2RC , perfect for TRAIL and MAXITRAIL MOTORbikes; the type of design allows you to keep the buttons well protected in case of hitting or falling; on the contrary, it needs more space on the handlebars, being wider than the slim.
1 JOYSTIC, 5 funtions (like others O2RC).
o2RcBoard
O2RCBOARD 1
Centralita Bluetooth
Among the many options, you can choose only the O2RCBOARD electronic control unit, a complete system that allows you to use the same professional controls with the electronic roadbook.
The unit comes with 2 waterproof connectors perfectly compatible with the ICO-Racing, F2R or GZParts system.
It is also possible to choose a 12V module with the same plug as the ICO power supply, no other installation will be necessary, simply remove the analog system, put in the digital one and change the connectors.
The system is simple and plug and play!
Fuentes de alimentacion
The O2RC needs a power supply for the system to work, by default it needs a 12V power supply (accepts 10-18 V 1 A).
It is possible to choose the version with USB power cable or the version USB+external 12V power supply.
12 Volts
Cable por defecto
Default cable
The default o2Rc control unit is compatible with a 12V power supply. It is supplied with a two-pole cable which can be connected directly to the vehicle’s electrical system.
It is the best option if you want to install the system stably, it admits an input of 10-18 V max 1A, and integrates a voltage regulator.
The default version is not compatible with the USB cable.

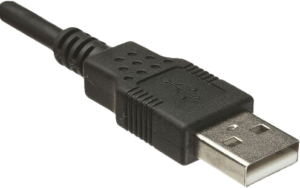

USB+12V power supplier
Optional
This is the most complete option, it allows to power the o2rc with a USB cable (included) or with the 12V of the vehicle.
One possible configuration is to connect the output wires of the regulator module to a circuit breaker, then to a fuse, and finally to the battery.
Another possible option is to connect the same wires to a 12V output that can be powered only when the bike is running, so as not to have problems of power consumption when the bike is stopped.
Opciones
Las opciones de montajes son muchisimas y permiten de poner el bloque de pulsadores en muchas posiciones
The o2RC can be placed in the classic position next to the left handgrip or mounted near the mirror bracket.
Among the other options, there is also the possibility of choosing a bracket compatible with some models of light controls and indicators, in order to easily and quickly solve the lack of space.
The technology of construction allows us to realize systems to measure, with a maximum customization.
